| System Type |
15" Active Vented Subwoofer |
| Power Rating |
2000W Program / 4000W Peak |
| Transducer Low |
15" Ferrite Woofer, 3" (76mm) Voice Coil with Long Excursion |
| Frequency Response (-6dB) |
45Hz – 120Hz |
| Max. SPL |
129dB |
| DSP Presets Modes |
BOOST / EXTENDED LF / NORMAL |
| Crossover Frequency |
80Hz / 100Hz / 120Hz selectable |
| Electronic Protections |
Over heat Protection / Short Circuit Protection / Digital Compressor |
| Cooling |
Temperature-controlled fan |
| Connectors |
Input: Left Mono (Combo) / Right (XLR-F), Output: Left Mono / Right (XLR-M) |

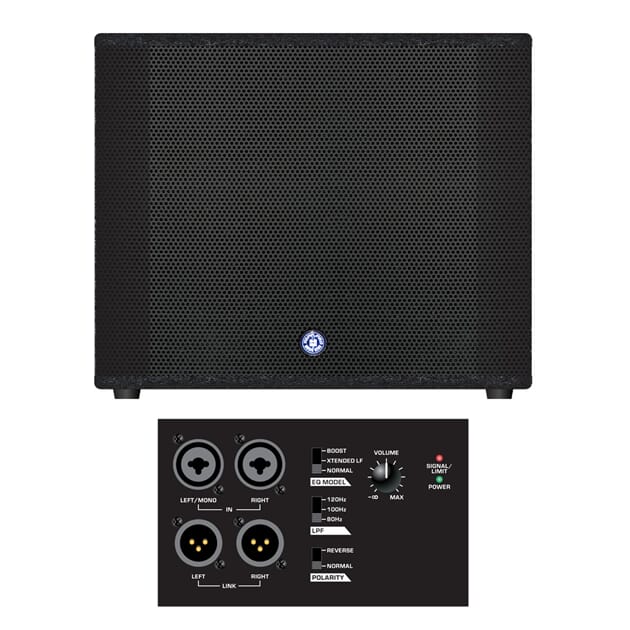

| External Controls |
Volume Control / Phase Switch / Switch for EQ Mode Selector / Switch for LPF / Power ON with Green LED / Limiter with Red LED |
| Power Supply |
100-240V ~50/60Hz |
| Enclosure Construction |
Plywood Cabinet, Resistant Black Paint, Metal Grille with Foam, Rubber Feet, Double handles |
| Mounting |
One Metal Standard Pole-Mount |
| Dimensions (WxHxD) |
22.83" (580mm) x 17.72" (450mm) x 19.80" (503mm) |
| Net Weight |
25.2Kg (55.55 Ibs) |
